Venturi Vacuum Pumps

Millibar offers an extensive line of venturi vacuum pumps to cover a wide range of applications from handling small parts to large parts and evacuating small volumes to large volumes. Each  Millibar pump has a removable vacuum cartridge  that generates the vacuum.  The cartridge is the central element of our dirt-tolerant, modular venturi vacuum pumps.

  • Many pump body sizes with features including integral valves, switches, manifolds and blow off.
  • Instant response using integral MAC™ Valve technology to generate  vacuum in under 12 ms.
  • Ideal applications include robotic gripping, material handling,  conveying,  packaging, palletizing and process control.
venturi vacuum pump
venturi vacuum pump

P10 Series

The P10 venturi vacuum pumps are the smallest, most compact venturi vacuum pumps and are commonly used to handle small parts or evacuate small volumes. There are 2 cartridges (C10) available with both medium and high vacuum levels for handling porous and non-porous products efficiently. They are placed close to the point of use and function with small compressed air and vacuum lines. They can handle parts smaller than 1” diameter although they are capable of lifting the weight of a car when matched with a large suction cup. Common products handled with this pump are semiconductors and injection molded parts.

Select
p10 venturi vacuum pump
p10 venturi vacuum pump

P14 Series

The P14 series of venturi vacuum pumps provide mid-range performance for material handling applications involving an array of cups with diameters of 2” (50mm) or less. There are 8 cartridges (C14) available with both medium and high vacuum levels for handling porous and non-porous products efficiently. Options include integral valves for fast cycle times and blow off. There are additional vacuum ports to directly plumb vacuum gauges and switches for a complete solution.

Select
p14 series venturi vacuum pump
P14 venturi vacuum pump

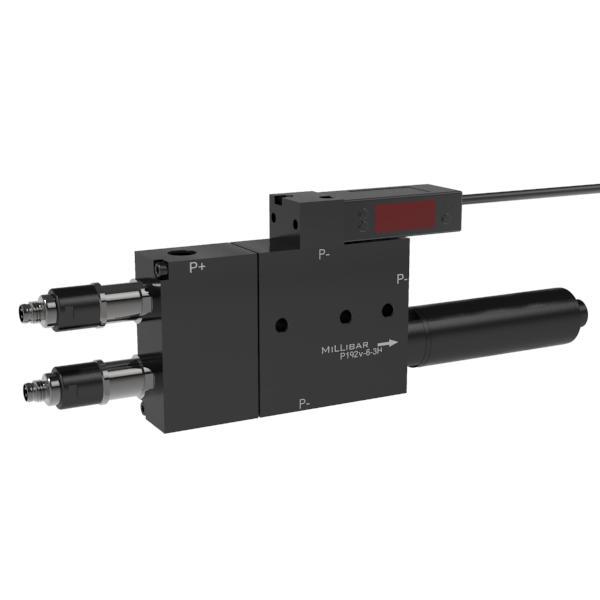

P19 Series

The P19 series of venturi vacuum pumps provide higher vacuum flow rates for material handling applications involving an array of cups with diameters of 2” (50mm) and greater. The higher flow rates provide rapid vacuum line evacuation and will overcome increased porosity from the larger cups to create a secure grip. There are 6 cartridges (C19) available for both medium and high vacuum levels for handling porous and non-porous products efficiently. Options include integral valves for fast cycle times and blow off. There are additional vacuum ports to directly plumb vacuum gauges and switches for a complete solution.

Select
p19 series venturi vacuum pump
p19 venturi vacuum pump

P19SL Series

The P19SL (Slim Line) space saving design allows positioning the pump at the point of use to place products into boxes. To obtain their narrow profile these venturi vacuum pumps have the vacuum port at one end and the exhaust port at the other end. There are 6 cartridges available for both medium and high vacuum levels for handling porous and non-porous products efficiently. They are designed to integrate with the MiniGrip and FlexiGrip foam vacuum grippers. There are additional vacuum ports to directly plumb vacuum switches for a complete solution.

Select
p19sl venturi vacuum pump
P19sl series venturi vacuum pump

Teflon® Series

Millibar manufactures Teflon® venturi vacuum pumps for a wide range of applications involving corrosive chemicals and high temperatures. In addition to our standard line, Millibar offers custom solutions as well.

Select
Teflon venturi vacuum pump
Teflon venturi vacuum pump
