Wrist Extensions – 31.5mm, 40mm, 50mm

Name: Wrist Extensions - 31.5mm, 40mm, 50mm
SKU: 7418
Availability: InStock

$79.22 – $152.79

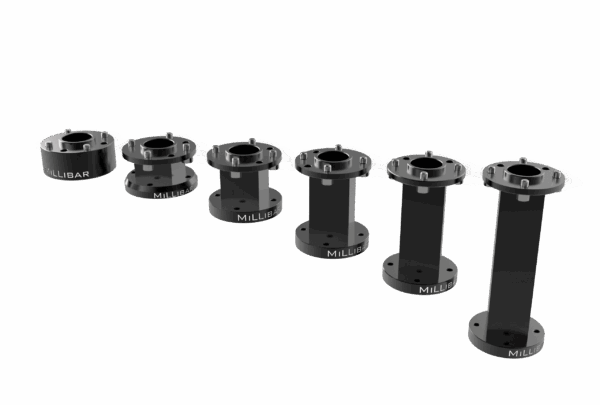

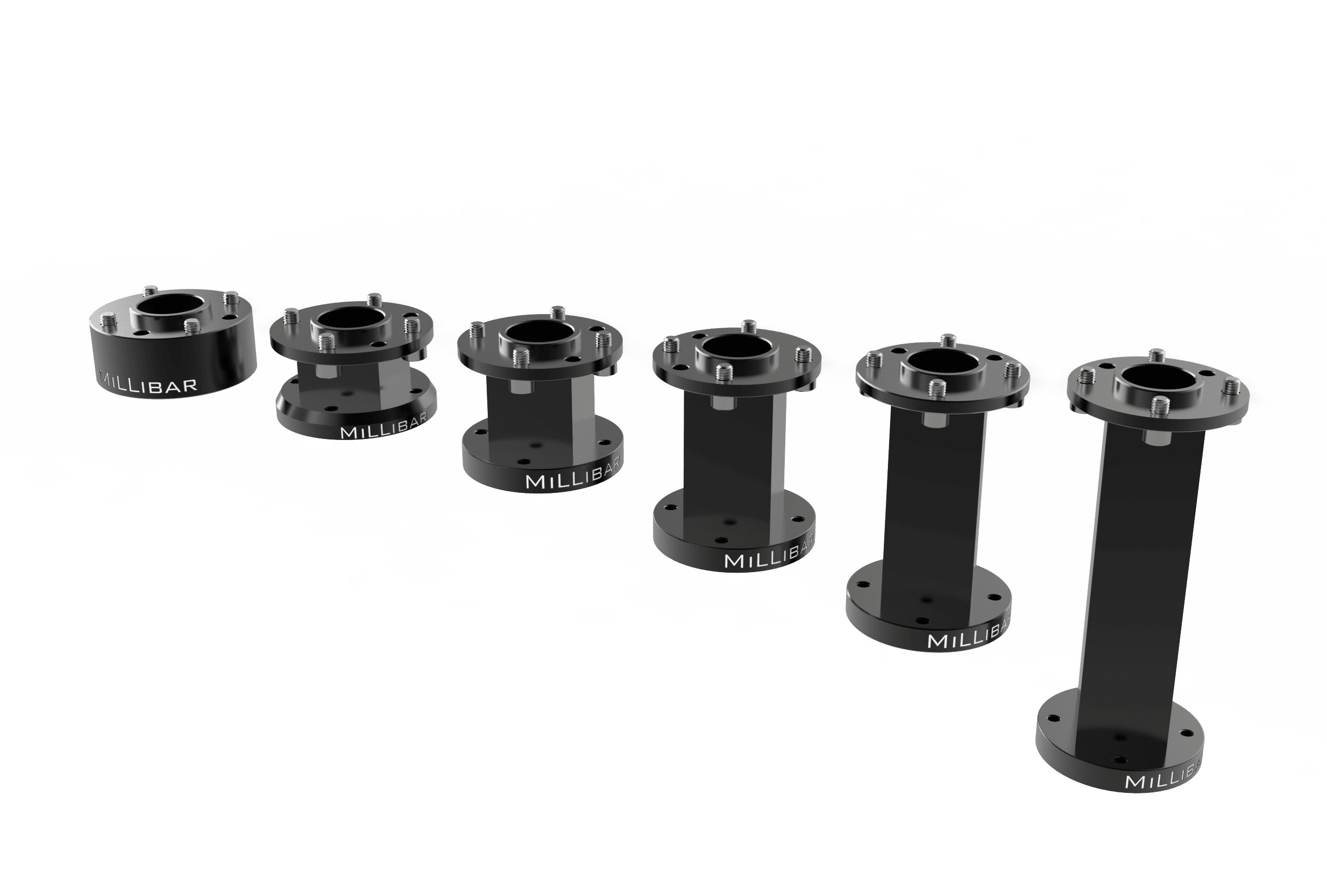

Wrist Extensions are ideal for placing products into, or removing products from, a deep container such as a box/ tote. Each extension contains a flange that bolts directly to your robot’s wrist and replicates that flange on the opposite end. Choose from 25mm to 150mm lengths. Add a Suction Cup Mount for attaching a suction cup to the end of the extension.

Choose Flange ISO Pattern

Select Length

Clear

SKU: N/A Category: End of Arm Tool Components

Select Model
CAD/ Downloads

Use the table and drawing below to select the extension length for your application.

EX-315

Part No.	L1 - in (mm)	Weight
EX-315-25	.984 (25)	0.109 kg
EX-315-35	1.378 (35)	.080 kg
EX-315-50	1.969 (50)	.089 kg
EX-315-75	2.953 (75)	.102 kg
EX-315-100	3.937 (100)	.115 kg
EX-315-150	5.896 (150)	.140 kg

EX-40

Part No.	L1 - in (mm)	Weight
EX-40-25	.984 (25)	0.109 kg
EX-40-35	1.378 (35)	.080 kg
EX-40-50	1.969 (50)	.089 kg
EX-40-75	2.953 (75)	.102 kg
EX-40-100	3.937 (100)	.115 kg
EX-40-150	5.896 (150)	.140 kg

EX-50

Part No.	L1 - in (mm)	Weight
EX-50-25	.984 (25)	0.109 kg
EX-50-35	1.378 (35)	.080 kg

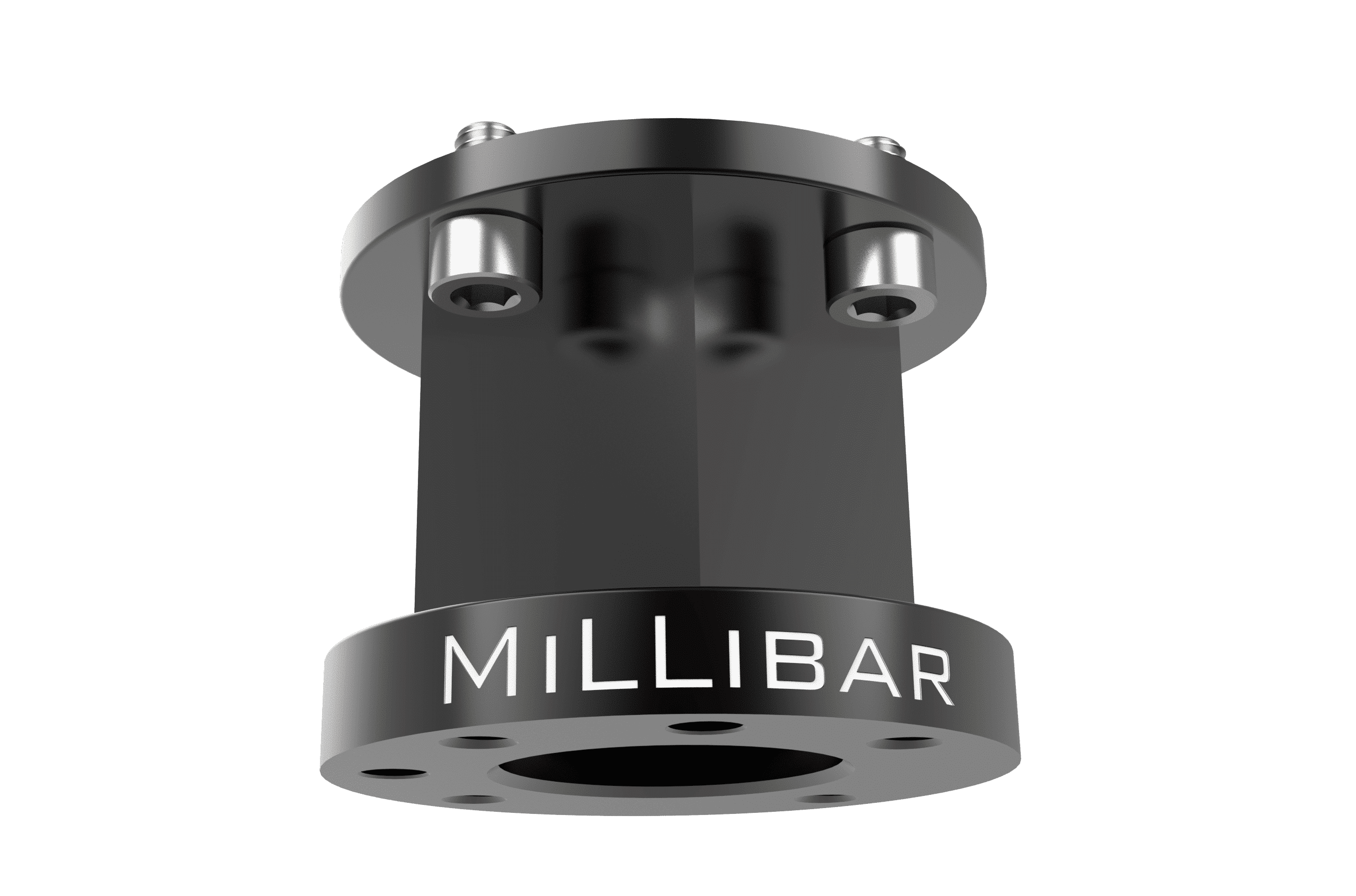

EX-50-50	1.969 (50)	.089 kg

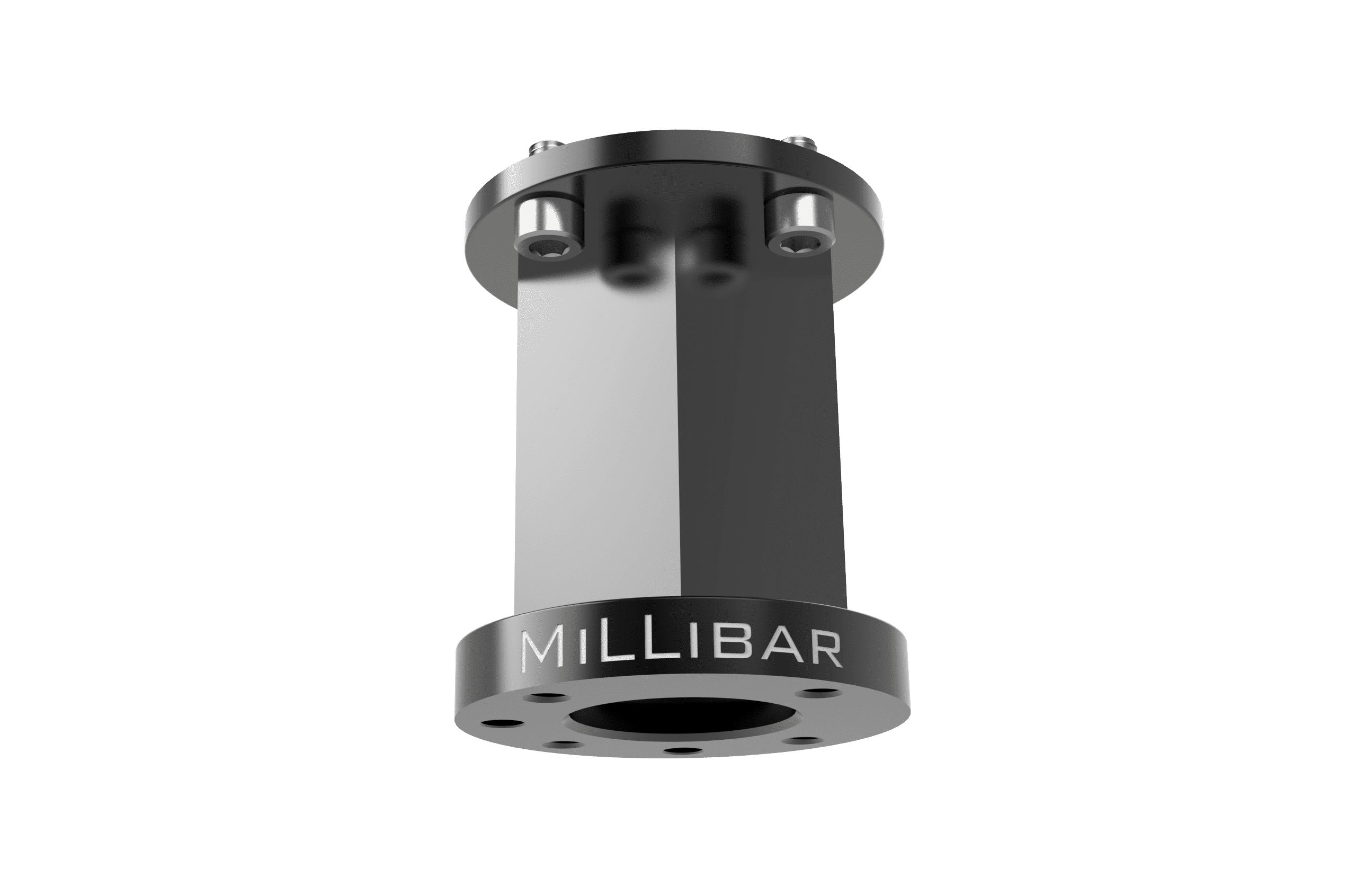

EX-50-75	2.953 (75)	.102 kg

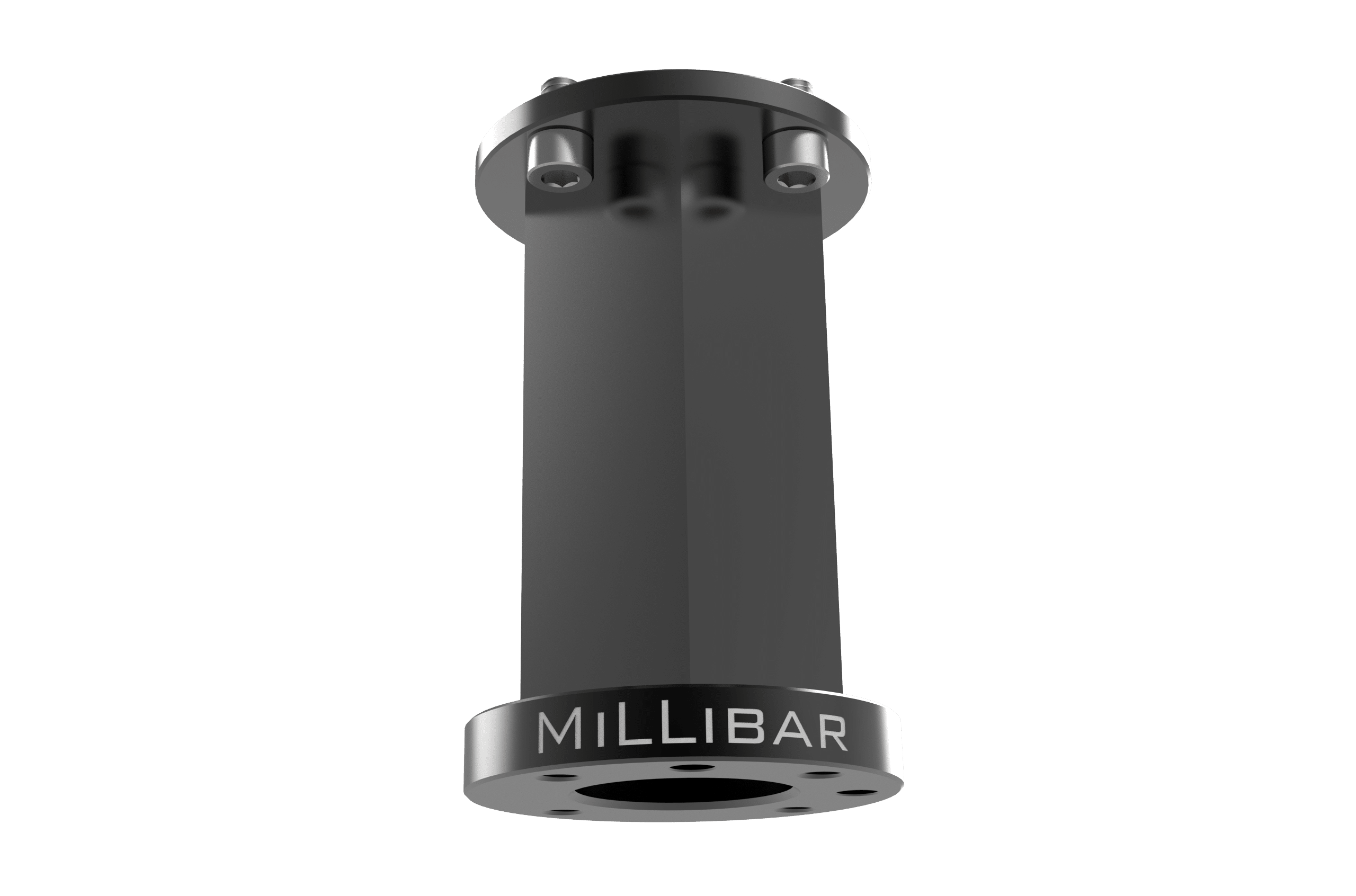

EX-50-100	3.937 (100)	.115 kg

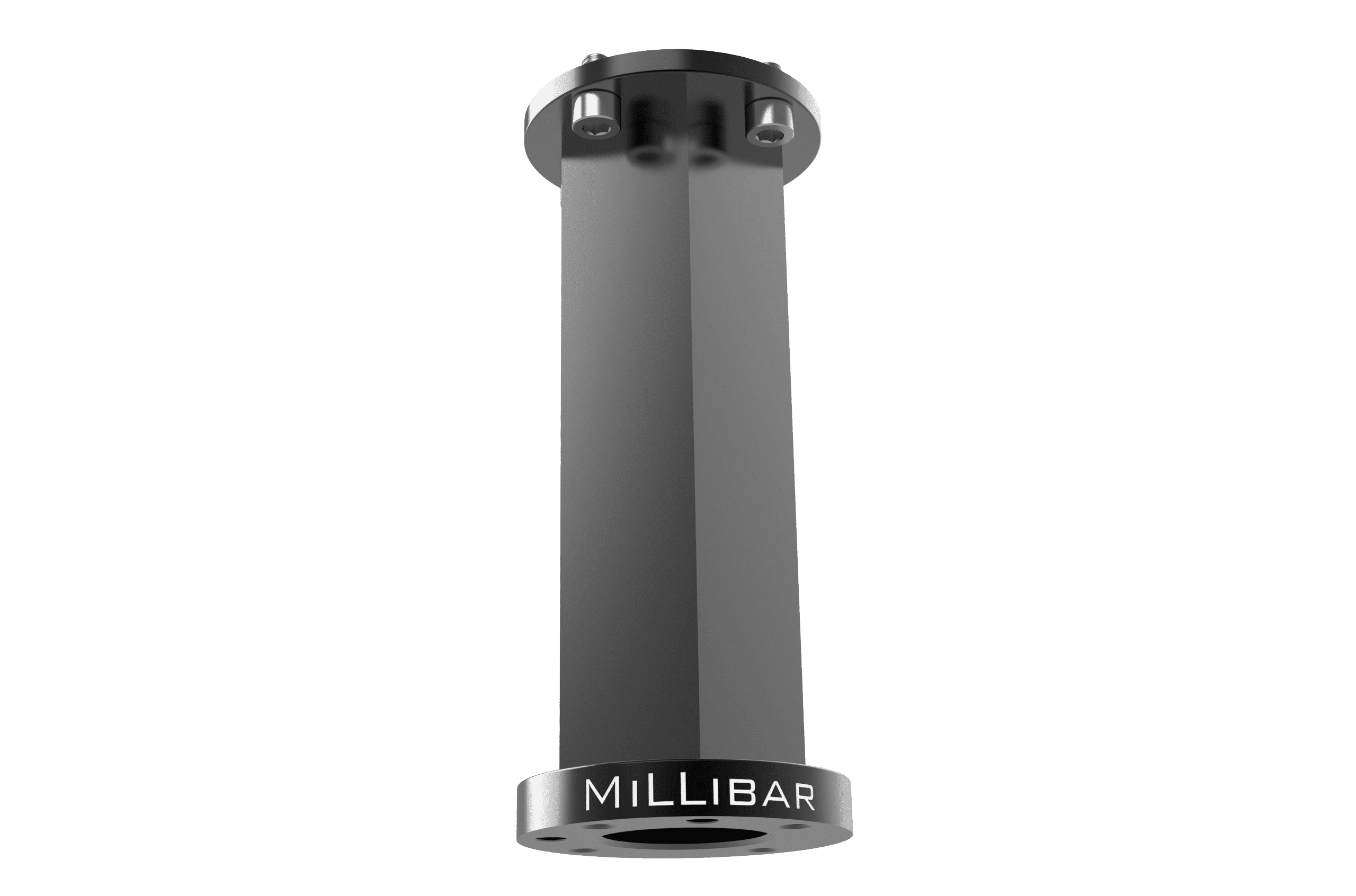

EX-50-150	5.896 (150)	.140 kg

Select one of the options below to download a 3D .step file of the 31.5mm extension.

Select one of the options below to download a 3D .step file of the 40mm extension.

Select one of the options below to download a 3D .step file of the 50mm extension.
