MTC-345-RS

$814.85

Low Profile Series Manual Tool Changer – Robot Side

The MTC-345-RS robot side makes changing end of arm tools/end effectors effortless and fast and without tools. Simply release the locking lever and slide a new tool into place. The low-profile design adds just 21mm to the height of the wrist.

This robot side mounts to any robot with a tool flange having a 31.5, 40 and 50mm ISO 9409 pattern. Alignment with the robot is assured with the included center alignment disks and dowel pins.  All mounting hardware is included.  No adapter plates are required.

  • Repeatability: +/-.025mm, +/-.001”
  • Moment: 50 N-m, 39 pound-feet
  • Low Profile: 21mm, .83” tall

Save design time and deploy your robot quickly by choosing a Millibar pre-engineered tool side to complete your tool changer.

SKU: MTC-345-RS Category:

MTC-345-RS Technical Drawing

millibar 3d step download

You may also like…

  • mtc-ur-tool-plate-low-profile-series-millibar-manual-tool-changer-bottom-iso-600px.jpg

    MTC-50

    The MTC-50 tool side has the ISO 9409-1-50-4-M6 mounting pattern replicating robot wrists with a 50mm mounting pattern. This tool side must be used with Millibar's MTC Low-Profile Series Robot Side.
    $84.88 Add to cart
  • mtc-m8-tool-plate-low-profile-series-millibar-manual-tool-changer-iso-600px.jpg

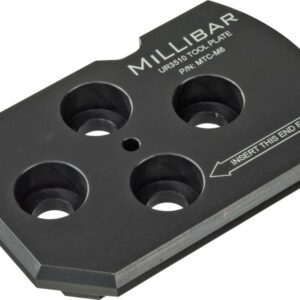

    MTC-M8
