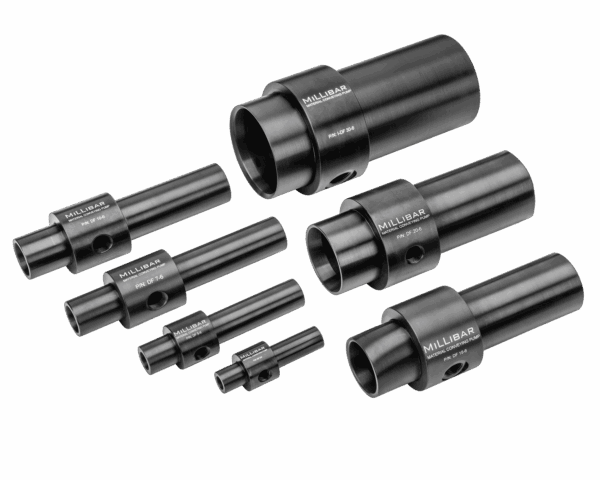

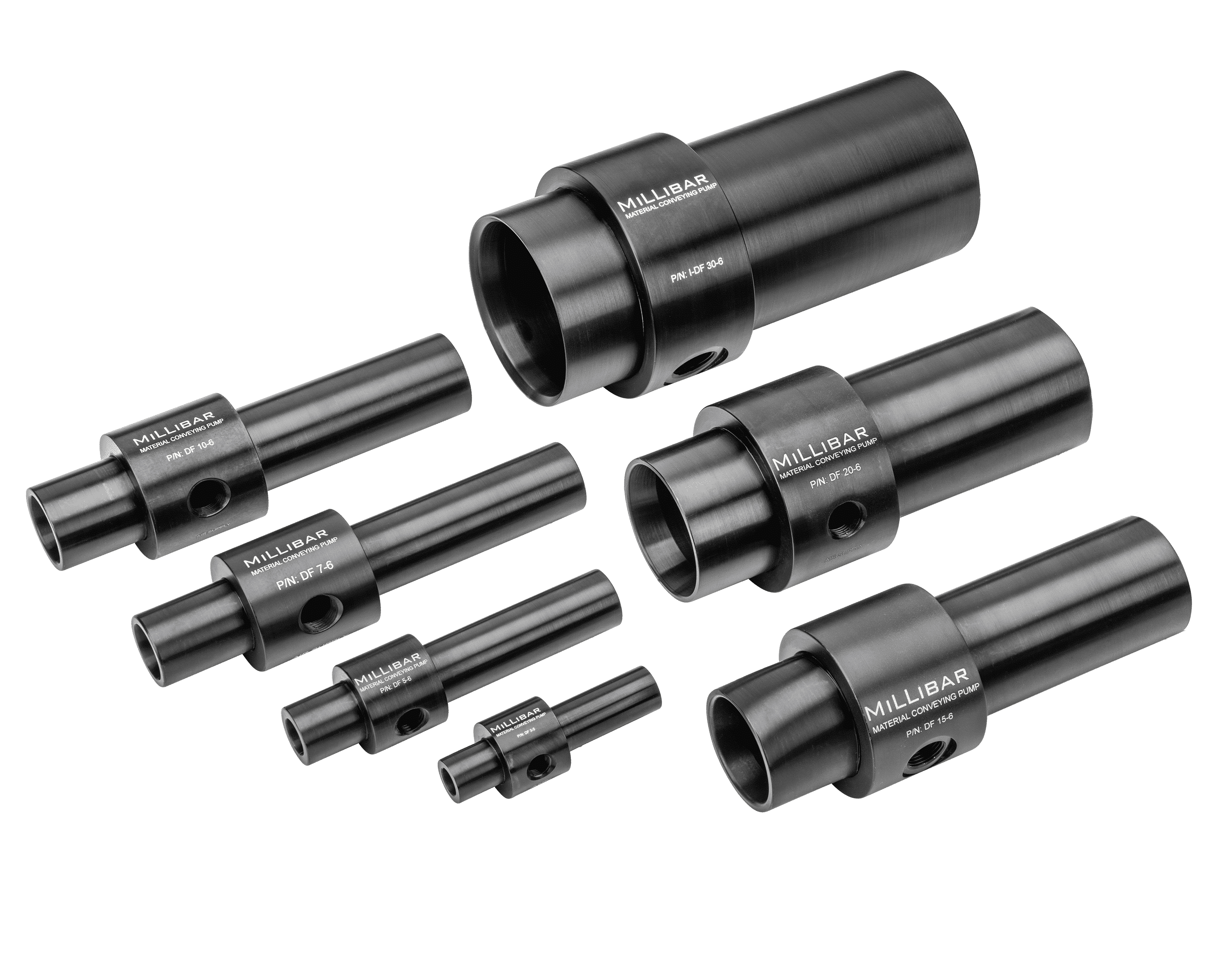

DF Series

Name: DF Series
SKU: 17625
Availability: InStock

Price range: $94.71 through $395.14

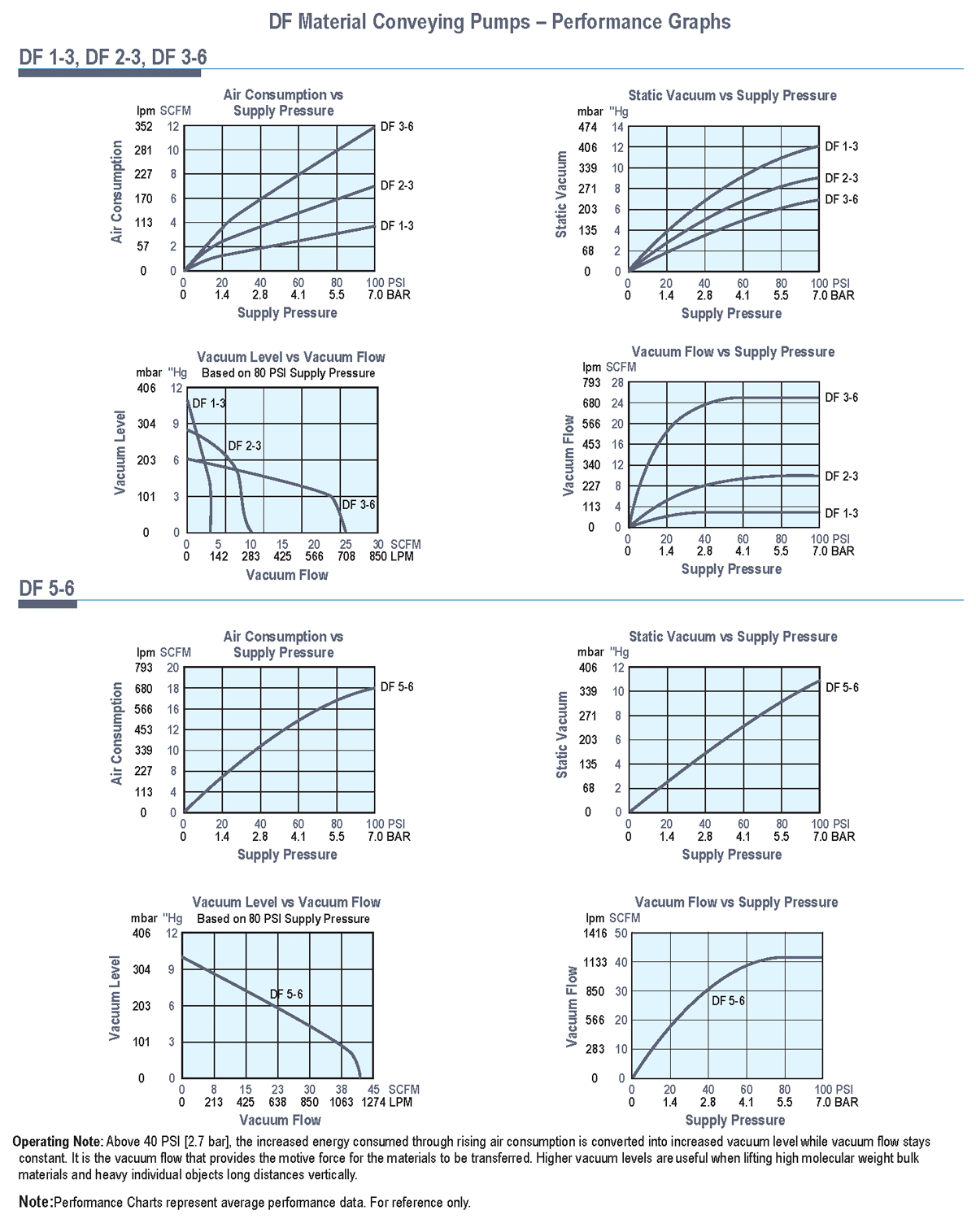

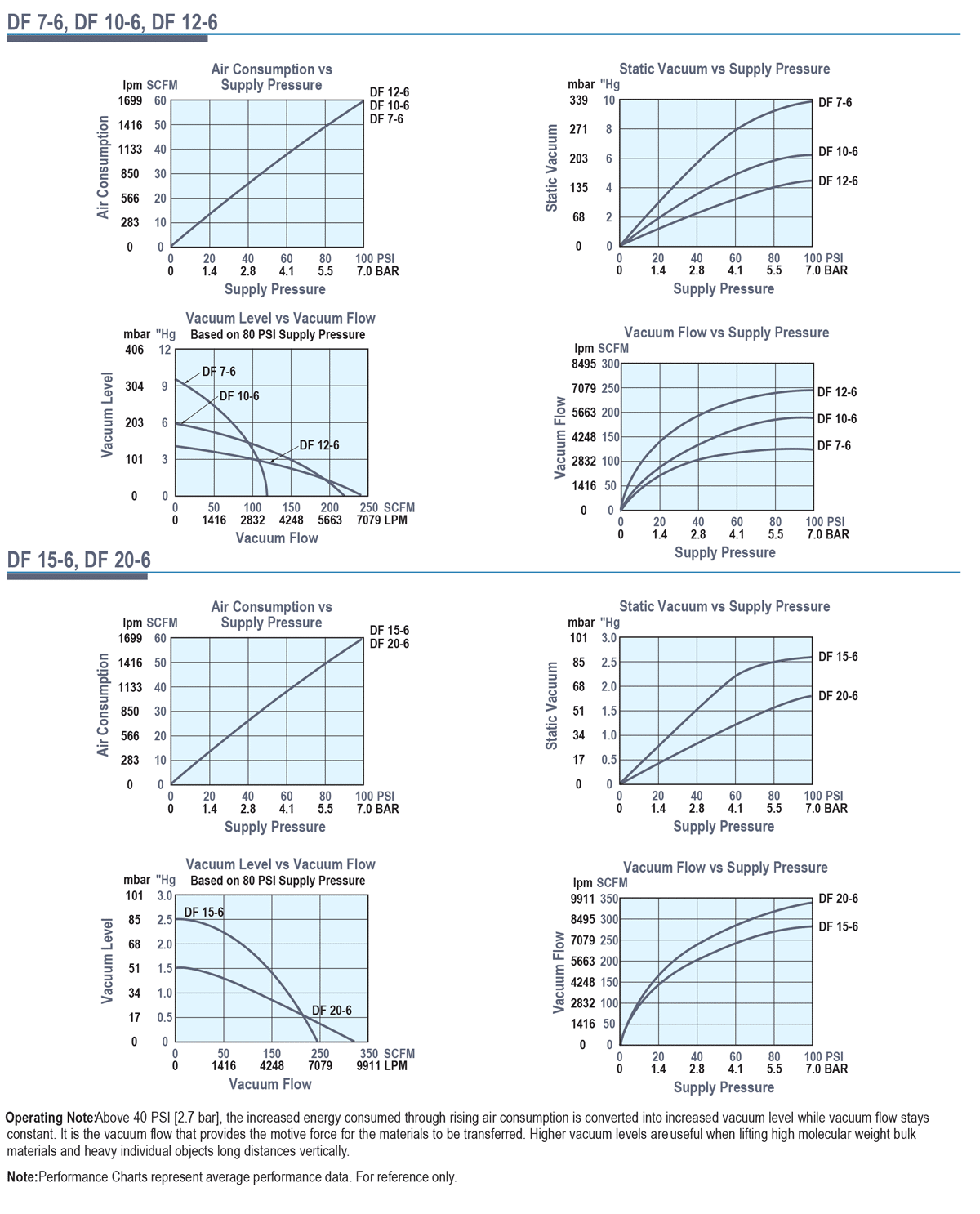

The DF pump’s unique capability to create instantaneous vacuum flow and high air velocity, combined with its straight-through, smooth bore design allows material to pass directly through the pump at high speeds without interference or clogging. Adjust and control the transfer speed by regulating the input pressure. For maximum efficiency, the compact design allows close placement to the work area.

Thread Type

Size

Threaded Vacuum Port

Threaded Exhaust Port

Clear

SKU: N/A Category: Material Conveying Pumps

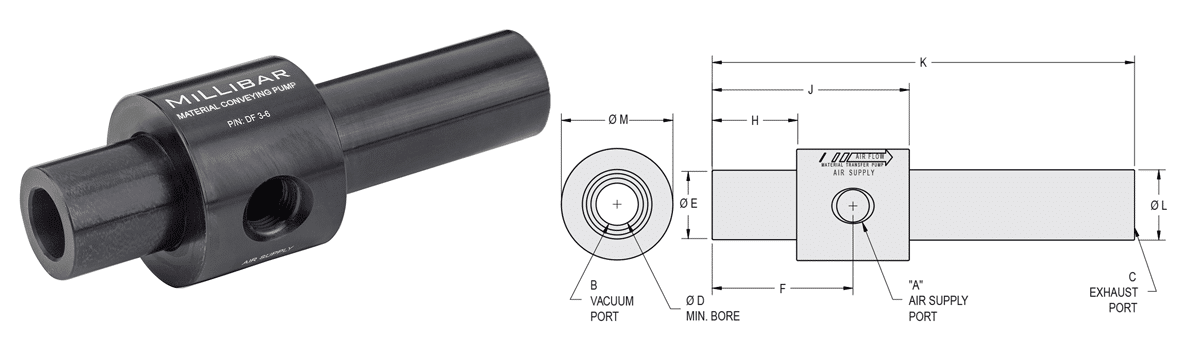

DF Series Imperial Dimensions

Model	A	B	C	B	C	D	E	F	H	J	K	L	M	Weight
Model	A	Optional Male Vacuum Thread	Optional Male Exhaust Thread	Optional Female Vacuum Thread	Optional Female Exhaust Thread	Minimum Bore	E	F	H	J	K	L	M	Weight
DF 1-3	⅛ NPT F	⅛" NPT	⅛" NPT	⅛" NPT	⅛" NPT	0.15	0.48	1.00	0.50	1.50	3.00	0.49	0.99	1.5 oz
DF 2-3	⅛ NPT F	⅜" NPT	⅜" NPT	¼" NPT	¼" NPT	0.25	0.73	1.25	0.75	1.75	3.50	0.74	1.24	3.2 oz
DF 3-3, 3-6	⅛ NPT F	⅜" NPT	⅜" NPT	¼" NPT	¼" NPT	0.38	0.73	1.25	0.75	1.75	3.50	0.74	1.24	2.8 oz
DF 5-3, 5-6	¼ NPT F	½" NPT	½" NPT	½" NPT	½" NPT	0.50	0.99	1.62	1.00	2.25	5.50	1.00	1.48	6.2 oz
DF 7-3, 7-6	⅜ NPT F	¾" NPT	¾" NPT	¾" NPT	¾" NPT	0.75	1.24	2.50	1.50	3.50	7.50	1.25	1.98	13.4 oz
DF 10-3, 10-6	⅜ NPT F	1" NPT	1" NPT	1" NPT	1" NPT	1.00	1.46	2.50	1.50	3.50	7.50	1.48	2.23	1 lb 5 oz
DF 12-3, 12-6	⅜ NPT F	consult factory	consult factory	consult factory	consult factory	1.25	1.71	2.50	1.50	3.50	7.50	1.73	2.47	1 lb 3 oz
DF 15-3, 15-6	⅜ NPT F	1¼" NPT	1¼" NPT	1¼" NPT	1¼" NPT	1.50	1.96	2.50	1.50	3.50	7.50	1.98	2.73	1 lb 5 oz
DF 20-3, 20-6	⅜ NPT F	2" NPT	2" NPT	2" NPT	2" NPT	2.00	2.46	2.50	1.50	3.50	7.50	2.48	3.23	1 lb 9 oz
DF 30-6	½ NPT F	N/A	N/A	N/A	N/A	3.00	3.46	2.50	1.00	3.00	8.50	3.48	4.47	3 lbs 6 oz
DF 40-12	¾ NPT F	N/A		N/A	N/A	4.00	4.89	3.25	2.00	4.50	9.50	4.95	5.95	6 lbs 11 oz

DF Series Metric Dimensions.xlsx

Model	A	B	C	B	C	D	E	F	H	J	K	L	M	Weight
Model	A	Optional Male Vacuum Thread	Optional Male Exhaust Thread	Optional Female Vacuum Thread	Optional Female Exhaust Thread	Minimum Bore	E	F	H	J	K	L	M	Weight
I-DF 1-3	G ⅛	G ⅛	G ⅛	G ⅛	G ⅛	3.8	12.2	25.4	12.0	38.1	76.2	12.4	25.1	42.5g
I-DF 2-3	G ⅛	G ⅜	G ⅜	G ¼	G ¼	6.4	18.4	31.8	19.1	44.5	88.9	18.8	31.5	91g
I-DF 3-3, 3-6	G ⅛	G ⅜	G ⅜	G ¼	G ¼	9.7	18.4	31.8	19.1	44.5	88.9	18.8	31.5	79g
I-DF 5-3, 5-6	G ¼	G ½	G ½	G ½	G ½	12.7	25.0	41.1	25.4	52.7	139.7	25.4	37.6	176g
I-DF 7-3, 7-6	G ⅜	G ¾	G ¾	G ¾	G ¾	19.1	31.4	63.5	38.1	88.9	190.5	31.8	50.3	380g
I-DF 10-3, 10-6	G ⅜	G 1	G 1	G 1	G 1	25.4	37.1	63.5	38.1	88.9	190.5	37.6	56.6	468g
I-DF 12-3, 12-6	G ⅜	consult factory	consult factory	consult factory	consult factory	31.8	43.4	63.5	38.1	88.9	190.5	43.9	62.7	541g
I-DF 15-3, 15-6	G ⅜	G 1¼	G 1¼	G 1¼	G 1¼	38.1	49.8	63.5	38.1	88.9	190.5	50.3	69.3	607g
I-DF 20-3, 20-6	G ⅜	G 2	G 2	G 2	G 2	50.8	62.5	63.5	38.1	88.9	190.5	63.0	82.0	777g
I-DF 30-6	G ½	N/A	N/A	N/A	N/A	76.2	87.9	63.5	38.1	88.9	215.9	88.4	113.5	1.4kgs
I-DF 40-12	G ¾	N/A	N/A	N/A	N/A	101.6	124.2	82.6	50.8	114.3	241.3	125.7	151.1	3kgs
